VHF/ UHF Dual-Band Two-Way Radio Features
>Earpiece / mic type : Kenwood Plug type
>Antenna : SMA -Female
>Frequency Range: VHF 136-174 / UHF 400-520MHz
>Dual-Band Display, Dual Freq. Display, Dual-Standby
>Output Power: 8Watts
*128 Channels 50 CTCSS and 104 CDCSS
*Built-in VOX Function
*1750Hz Brust Tone
*FM Radio (65.0MHz-108.0MHz)
*LED Flashlight
*Large LCD Display
*High/Mid/Low RF Power Switchable
*25KHz/12.5KHz Switchable
*Emergency Alert
*Low Battery Alert
*Battery Saver
*Time-out Timer
*Keypad Lock
*Monitor Channel
*Channel Step: 2.5/5/6.25/10/12.5/25KHz
Package Include:

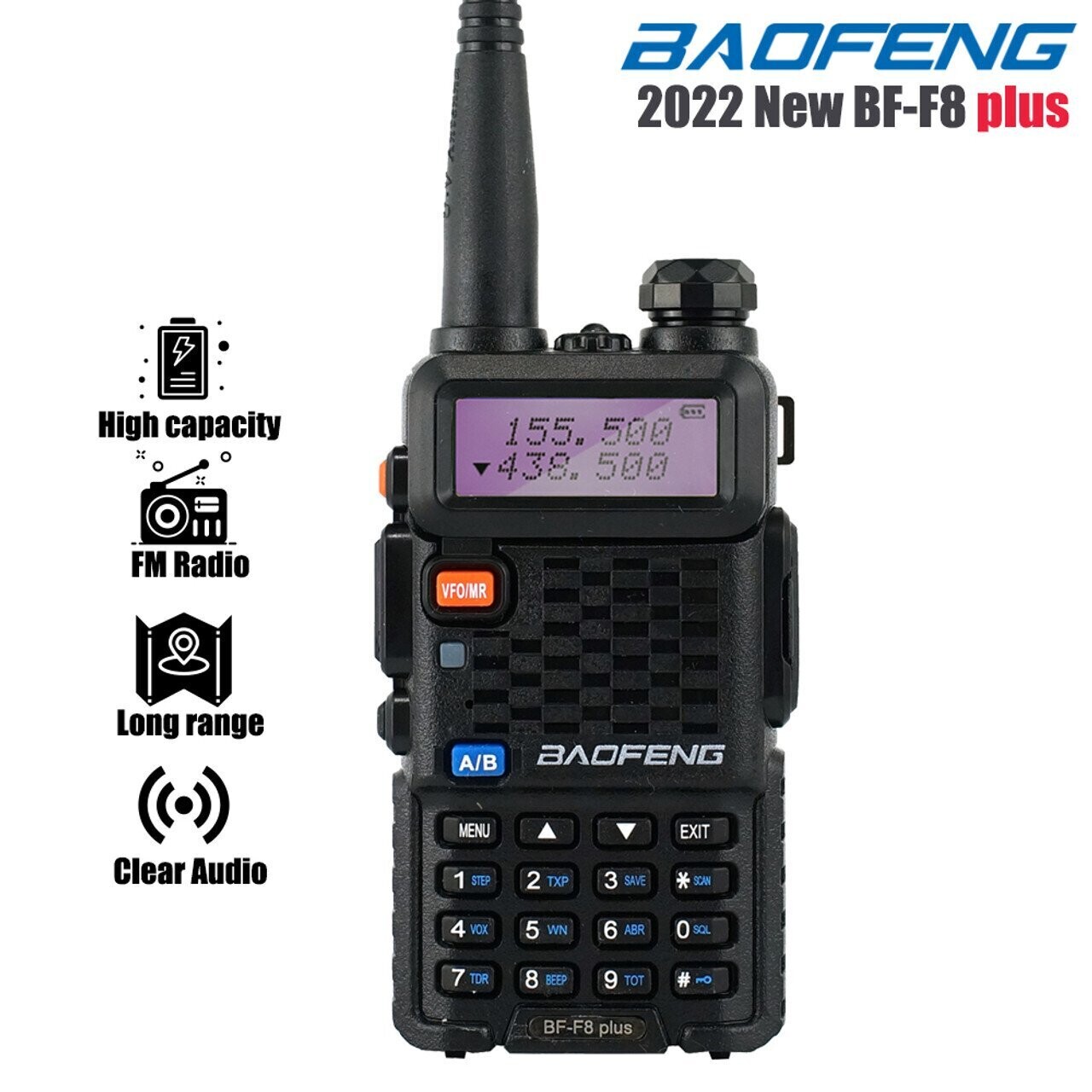

-1 x BF-F8 Plus Dual-Band Walkie Talkie
-1 x 7.4V 1800mah Original Baofeng Li-ion Battery Pack
-1 x Antenna
-1 x Hand Strap
-1 x Belt Clip
-1 x ENG Manual
-1 x Desktop Charger with USB Connector Male
-1 x PTT Earpiece for free
Item number | UV- 5R III |
General | |
Frequency Range | 65-108MHz(FM Receive only) |
136-174MHz / 400-52MHz (TX/RX) | |
Channel No. | 128 |
Frequency Stability | ±2.5ppm |
Antenna | High gain Dual Band antenna |
Antenna Impedance | 50ω |
Operating Voltage | DC 7.4V |
Mode of operation | Simple or semi-duplex |
Dimensionï¼W x H x Dï¼?/span> | 100 x 52 x 32 mm |
Weight | 250g including battery & antenna |
Transmitter | |
Output power | 7W / 4W / 1W (Max 8W) |
Modulation Mode | 16kφF3E / 11kφF3E |
Maximum deviation | 5 kHz(Wide) / 2.5kHz(Narrow) |
Spurious Radiation | 7 μW |
Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
Pre-emphasis characteristics | 6dB |
Current | ≤1.6A(5W) |
CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
Intermediation sensitivity | 8-12mv |
