A hang glider for advanced pilots who do not want to fly a kingpostless glider

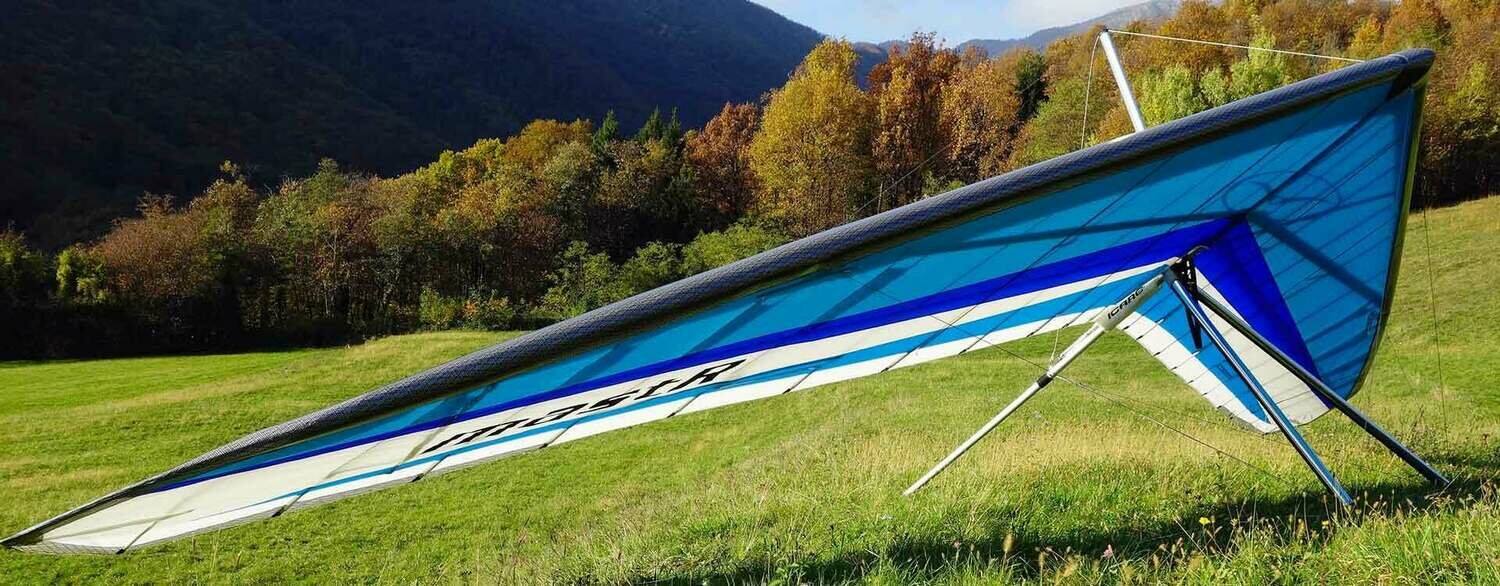

The MastR is a direct development of the world champion hang glider Laminar, created by adding a central hole for the kingpost and reducing the number of battens in order to improve glider manoeuvrability.

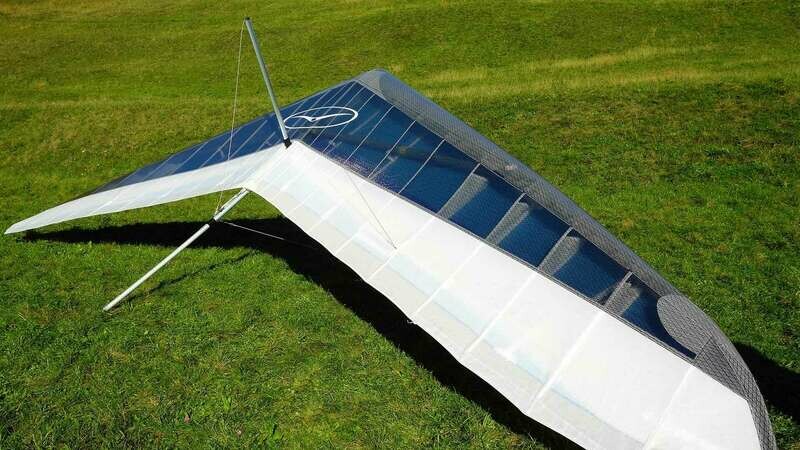

In terms of performance, manoeuvrability and simplicity of flying, the MastR is an excellent kingpost hang-glider.
The high-performance king post HG (mast = King post R = race) of Icaro2000 with the new updates for the year 2014:
redesigned sail (less wrinkles in flight at all VG tensions) increased stroke GV, new profile, new details of the chassis, lighter weight, higher performance and new colors.
This is half Technora + Dacron Square sail, great compromise in durability and performance.

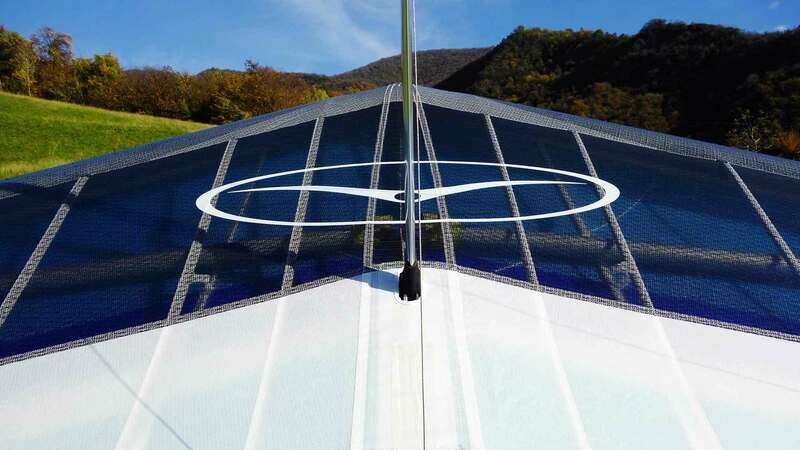

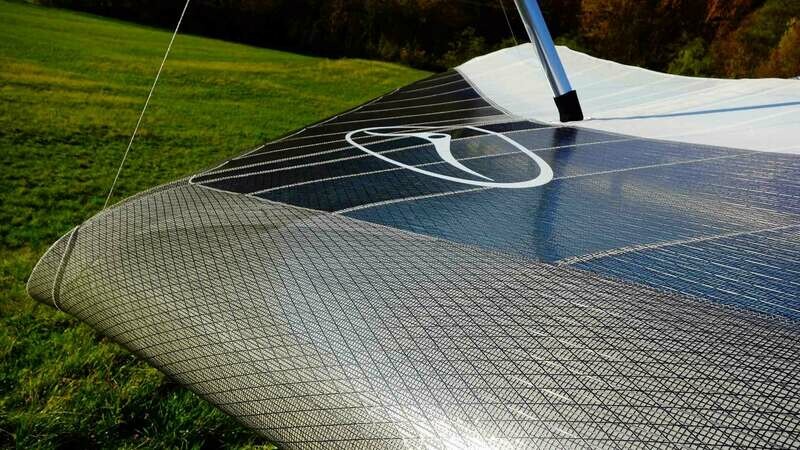

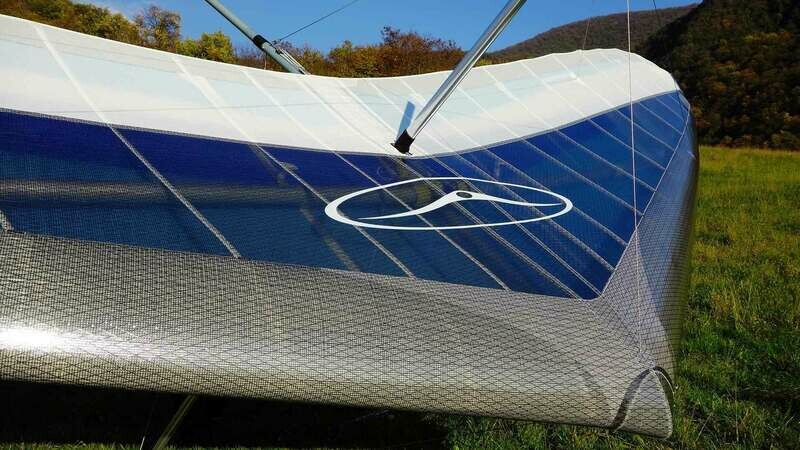

The leading edge is not interrupted on the nose by the mylar pockets. This allows perfect, uniform tension distribution.

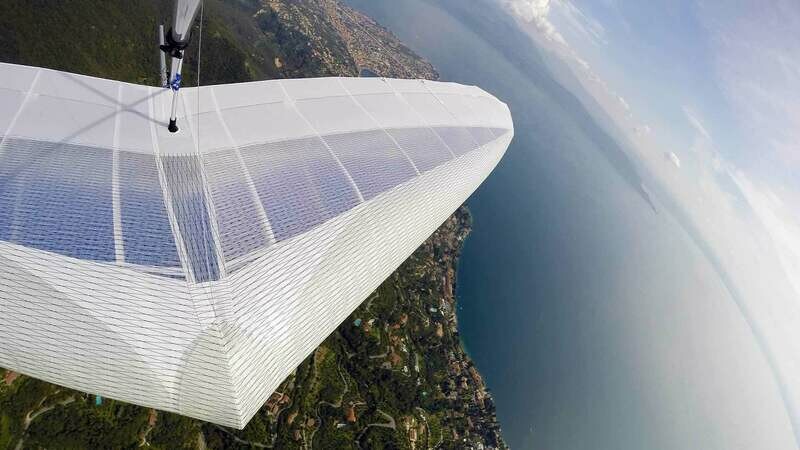

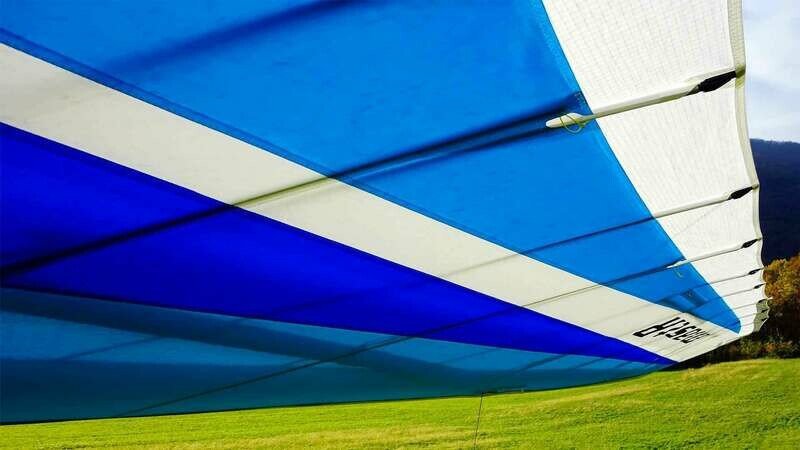

The double surface sail has been re-designed for perfect tension distribution.
New reinforcement design has enabled a reduction in weight.
The size Large has one extra batten with respect to the size Medium in order to reduce deformation of the wing profile at high speeds.
The lower batten pockets have been re-designed to simplify the insertion of battens and to prevent them from emerging from the batten sleeve, when the hang-glider remains open for an extended period at the launch site with a strong wind from behind.
We decided to use a single pitch cable to obtain a better ratio between performance and handling

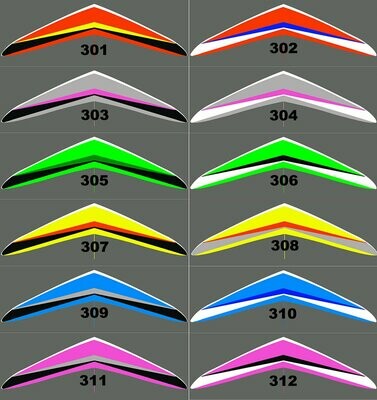

There are 12 designs from which to choose (or you can choose your own colours).
The finest tubing available is used, made from 7075 alloy, the same as that utilized in the aeronautical industry.
Our tubing is manufactured by extrusion, the process that guarantees the highest possible performance in terms of weight/strength and reliability.
Small | Medium | Large | ||
Area | m2 | 12.6 | 13.77 | 14.88 |
Nose angle | deg | 128 | 131 | 131 |
Wingspan | ml | 9.4 | 10.06 | 10.48 |
Aspect ratio | 7.01 | 7.35 | 7.38 | |
Double surface | % | 96 | 94 | 94 |
Battens (upper + lower sail) | nr | 18+4 | 18+4 | 20+4 |
Weight (without bag) | Kg | 27 | 30 | 32 |
Pilot hook-in weight (min / max) | kg | 50/75 | 70/90 | 85/110 |
Packing bag lenght | ml | 4.65 | 4.98 | 5.2 |
Short packed length | ml | 3.25 | 3.9 | 4.1 |
